NAVYPEDIA

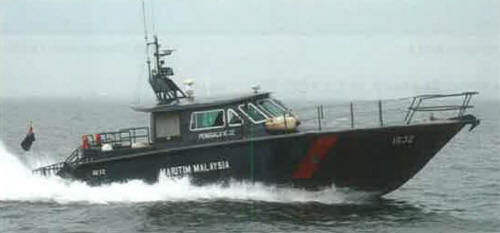

Penggalang 32 2012

Ships

Names	Builders	Completed	Losses	Transfers	Discarding
KB52-58, 2011- 1630-1636 Penggalang 30-36 KB59 KB70-78, 2011- 1637-1646 Penggalang 37-46	Perlis Marine: KB52-55, 58, 59, 70-78	2002: KB52-59, 70-78	none	none	in service (2019): 1630-1633, 1635-1646, KB59

Technical data

Displacement standard, t
Displacement full, t
Length, m	16.0
Breadth, m	4.50
Draught, m	1.10
No of shafts	2
Machinery	2 MAN 12V D2842LE406 diesels
Power, h. p.	2400
Max speed, kts	55
Fuel, t	diesel oil
Endurance, nm(kts)
Armament	1 x 1 - 7.6/90
Electronic equipment	radar
Complement	7

Graphics

Project history

Customs.

Modernizations

None.

Naval service

In 2011 all except one boat were transferred to Maritime Enforcement Agency.
