Al Bazam 2013

Ships

Names	Builders	Completed	Losses	Transfers	Discarding
P301 بطنه [Butinah] P302 البزم [Al Bazam] P303 زابل [Zaabeel] P304 المرم [Al Muroom] P305 الحمرية [Al Hamryah] P306 الخان [Al Khan] P307 الزوراء [Al Zawraa] P308 P309 P310 P311 P312	Swede Ship Marine AB, Tjörn, Sweden: P301-303 ADSB, Massafah, Abu Dhabi: P304-312	2012: P301-303 2013-2015: P304-312	none	none	in service (2020): P301-312

Technical data

Displacement standard, t	30
Displacement full, t	48
Length, m	26.5
Breadth, m	5.10
Draught, m	1.10
No of shafts	2 waterjets
Machinery	2 MTU 12V2000 M93 diesels
Power, h. p.	3600
Max speed, kts	40
Fuel, t	diesel oil
Endurance, nm(kts)
Armament	1 x 4 Marte Mk 2N SSM (4 Marte Mk 2N) or 1 x 1 - 120/15 Nemo mortar, 1 x 1 - 27/63 MLG27, 1 x 1 - 12.7/90
Military load	42 troops
Electronic equipment	radar, IPN-S CCS
Complement	6

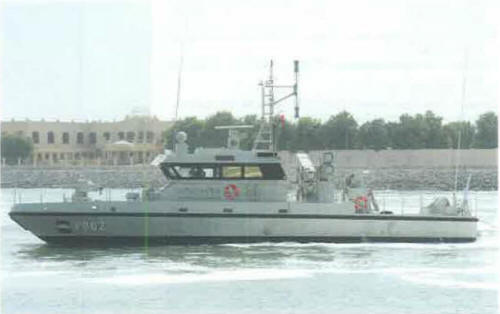

Graphics

Project history

Modofied Project Ghannatha craft intended also for service as guided-missile patrol boats, ordered in 2009. Aluminium construction. Can later receive Sea Spear missiles instead of Marte Mk 2N.

Modernizations

None.

Naval service

No significant events.
