JERONG fast attack craft (gun) (1976-1977)





Todak 2007

Ships


Name No Yard No Builder Laid down Launched Comp Fate
Jerong 3505   Hong Leong-Lürssen, Butterworth   28.7.1975 27.3.1976 in service (2019)
Todak 3506   Hong Leong-Lürssen, Butterworth   16.3.1976 16.6.1976 in service (2019)
Paus 3507   Hong Leong-Lürssen, Butterworth   2.6.1976 16.8.1976 in service (2019)
Yu 3508   Hong Leong-Lürssen, Butterworth   17.7.1976 15.11.1976 in service (2019)
Baung 3509   Hong Leong-Lürssen, Butterworth   5.10.1976 11.7.1977 in service (2019)
Pari 3510   Hong Leong-Lürssen, Butterworth   1/1977 23.3.1977 in service (2019)


Technical data


Displacement standard, t

210

Displacement full, t

245

Length, m

44.9

Breadth, m

7.00

Draught, m

2.48 propellers

No of shafts

3

Machinery

3 MTU MB870 diesels

Power, h. p.

9900

Max speed, kts

32

Fuel, t

diesel oil

Endurance, nm(kts)2000(15)
Armament

1 x 1 - 57/70 SAK-57 Mk 1, 1 x 1 - 40/70 Bofors 350

Electronic equipmentDecca 1226 radar, Naja e/o system
Complement

36



Standard scale images

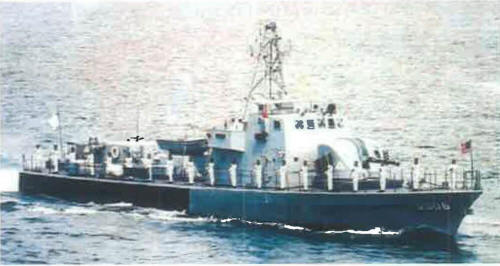

<i>Jerong</i> 1990
Jerong 1990


Graphics


<i>Todak </i>2007
Todak 2007


Project history

Six FPB45 type gunboats were ordered in 1973 from Lürssen for building at a new yard at Butterworth. Lürssen design with Swedish armament.

Modernizations

mid-2010s, all: - Decca 1226 radar; + type 1007 radar, DR-3000 ECM suite

Naval service

No significant events.
