PERSIA / IRAN
AMPHIBIOUS SHIPS AND CRAFT
FOQUE small landing ship (1988-2017)
1994
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| فقه [Fouque] | 101 | Nuh-e-Nabi, Bandar-Abbas | 17.6.1988 | 1988 | IRGC, in service (2019) | ||
| قشم [Qeshm] | 504 | Nuh-e-Nabi, Bandar-Abbas | 9.1995 | 1995 | IRGC, in service (2019) | ||
| هرمز [Hormuz] | 505 | Nuh-e-Nabi, Bandar-Abbas | 9.1995 | 1995 | IRGC, in service (2019) | ||
| فرور [Forur] | 506 | Nuh-e-Nabi, Bandar-Abbas | 2015-17 | IRGC, in service (2019) | |||
| 507 | Nuh-e-Nabi, Bandar-Abbas | 2015-17 | IRGC, in service (2019) | ||||
| 508 | Nuh-e-Nabi, Bandar-Abbas | 2015-17 | IRGC, in service (2019) |
Technical data
| Displacement standard, t | 250 |
|---|---|
| Displacement full, t | 300 |
| Length, m | 32.0 pp 37.0 oa |
| Breadth, m | 8.00 |
| Draught, m | 1.50 |
| No of shafts | 2 |
| Machinery | 2 MWM TBD234 V8 diesels |
| Power, h. p. | 490 |
| Max speed, kts | 10 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 400(10) |
| Armament | none |
| Military load | 100 t cargo |
| Electronic equipment | radar |
| Complement | 10 |

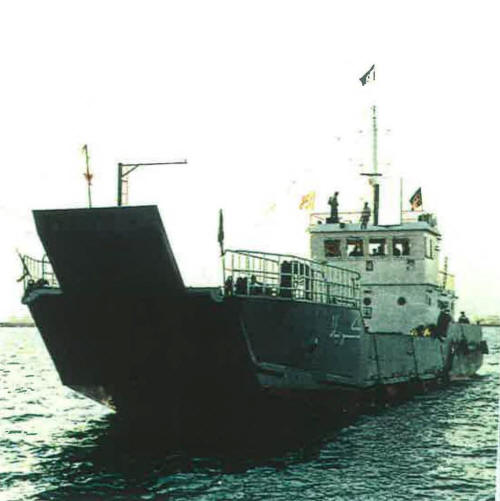

Graphics
1994
Project history
Ordered by merchant fleet but commissioned by IRGC.
Modernizations
None.
Naval service
No significant events.
