ŽEMAITIS multirole warships (1989-1994/2008-2016)

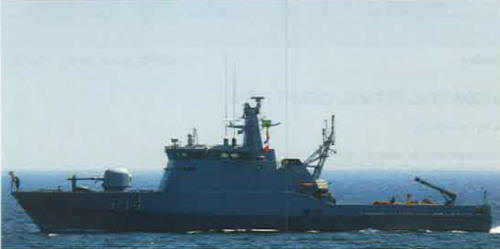

Aukštaitis 2014
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| Žemaitis (ex-Flyvefisken) | P11 | 253 | Karlskronavarvet, Sweden // Danyard, Aalborg, Denmark | 15.8.1995 | 26.4.1986 | 19.12.1989 // 20.5.2008 | in service (2020) |
| Dzūkas (ex-Hajen) | P12 | 254 | Danyard, Aalborg, Denmark | 16.6.1988 | 6.12.1988 | 19.7.1990 // 28.1.2009 | in service (2020) |
| Aukštaitis (ex-Lommen) | P14 | 262 | Danyard, Aalborg, Denmark | 1993 | 21.1.1994 // 12.3.2010 | in service (2020) | |
| Sėlis (ex-Havkatten) | P15 | 255 | Danyard, Aalborg, Denmark | 16.12.1988 | 30.5.1989 | 1.11.1990 // 23.11.2016 | in service (2020) |
Technical data
| Displacement standard, t | 320 |
|---|---|
| Displacement full, t | 450 |
| Length, m | 50.0 pp 54.0 oa |
| Breadth, m | 9.00 |
| Draught, m | 2.50 max hull |
| No of shafts | 2 |
| Machinery | 2 MTU 16V396 TB94 diesels |
| Power, h. p. | 5800 |
| Max speed, kts | 18 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 2400(18) |
| Armament | 1 x 1 - 76/62 OTO-Melara Compact SR, 2 x 1 - 12.7/90 |
| Electronic equipment | Scanter Mil 009 radar, Medusa Mk 4B e/o system, CTS-36 sonar, Sabre, Cygnus ECM suites, 2x Sea Gnat decoy RL, Athena CCS |
| Complement | 29 |
Standard scale images
Žemaitis 2010
Graphics
Aukštaitis 2014
Project history
Former Danish multifunctional ships of Stanflex-300 design, transferred without missile modules. Original CODAG machinery was partly dismantled (boost gas turbine, cruise diesel and central shaft were removed). Electronic equipment was modified during transfer.
Modernizations
None.
Naval service
No significant events.
