TRABLOUS patrol craft (2012)
Trablous 2012
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| تربلوس [Trablous] | 44 | RiverHawk, Tampa, USA | 19.1.2012 | 26.11.2012 | in service (2019) |
Technical data
| Displacement standard, t | |
|---|---|
| Displacement full, t | 265 |
| Length, m | 43.5 |
| Breadth, m | 8.50 |
| Draught, m | 2.00 |
| No of shafts | 2 waterjets |
| Machinery | 2 MTU 20V4000 M93L diesels |
| Power, h. p. | |
| Max speed, kts | 28 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 2600(11) |
| Armament | 2 x 1 - 25/80 Breda-Oerlikon KBA, 2 x 1 - 12.7/90 |
| Electronic equipment | 2x Raytheon radars, Voyager e/o system |
| Complement | 22 |
Graphics

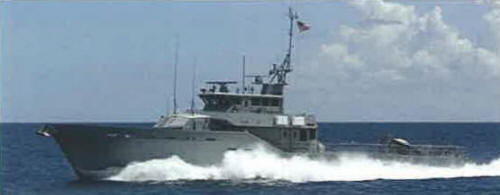

Trablous 2012
Project history
RiverHawk 145ft Security craft. Built under te US Foreign Military Sales Program. GRP hull with aluminium deck and superstructures. Carries a fast RIB aft. There is a place to install 30mm gun fwd.
Modernizations
None.
Naval service
No significant events.
