LEMPIRA patrol craft (2013)
Lempira 2013
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| Lempira | FNH1401 | Damen, Gorinchem, Netherlands | 4.9.2013 | in service (2019) | |||
| General Morazán | FNH1402 | Damen, Gorinchem, Netherlands | 12/2013 | in service (2019) |
Technical data
| Displacement standard, t | |
|---|---|
| Displacement full, t | 200 |
| Length, m | 40.0 pp 42.8 oa |
| Breadth, m | 7.11 |
| Draught, m | 2.52 |
| No of shafts | 2 |
| Machinery | 2 Caterpillar 3516B DITA diesels |
| Power, h. p. | 5600 |
| Max speed, kts | 25 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 2450(10) |
| Armament | 2 x 1 - 12.7/90 |
| Electronic equipment | JRC5332, JRC5312 radars |
| Complement | 24 + 2 passengers |
Standard scale images

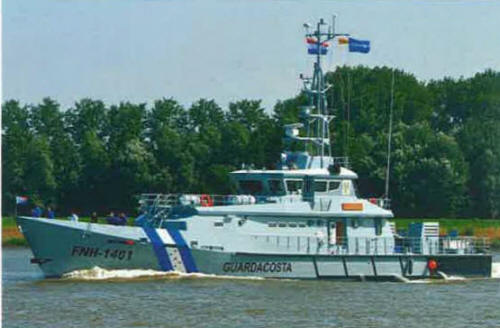

Lempira 2015
Graphics
Lempira 2013
Project history
Damen Stan Patrol 4207 class.
Modernizations
None.
Naval service
No significant events.
