NAKOURA patrol launch (1992/2007)

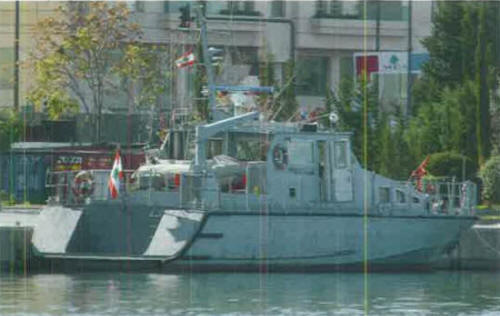

Nakoura 2008
Ships
| Names | Builders | Completed | Losses | Transfers | Discarding |
|---|---|---|---|---|---|
308 نقرا [Nakoura] |
Fassmer, Berne-Motzen, Germany: 308 |
1992 // 2007: 308 |
none |
none |
in service (2019): 308 |
Technical data
| Displacement standard, t | 32 |
|---|---|
| Displacement full, t | 35 |
| Length, m | 20.0 |
| Breadth, m | 5.75 |
| Draught, m | 1.45 |
| No of shafts | 2 |
| Machinery | 2 MTU 12V183 TE92 diesels |
| Power, h. p. | 1000 |
| Max speed, kts | 30 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 300(25) |
| Armament | 1 x 1 - 7.6/90 |
| Electronic equipment | Sperry radar |
| Complement | 6 |
Graphics
Nakoura 2008
Project history
Former City of Bremen police patrol boat. Aluminium construction. Fitted with a stern ramp for 3m RIB.
Modernizations
None.
Naval service
No significant events.
