BULTA patrol boats (1966-1967/1994-2001)





Lode 2003

Ships


Name No Yard No Builder Laid down Launched Comp Fate
Zibens (ex-Djerv) P01   Westermoens BB, Mandal, Norway   28.4.1966 10.1966 // 11.6.2001 stricken 2013
Lode (ex-Hvass) P02   Westermoens BB, Mandal, Norway   20.12.1966 4.1967 // 11.6.2001 stricken 2013
Linga (ex-Gnist) P03   Bergens MV, Norway   18.8.1967 11.1967 // 11.6.2001 stricken 2012
Bulta (ex-Traust) P04   Bergens MV, Norway   18.11.1966 5.1967 // 13.2.1994 stricken 2011


100 - 1000 t displacement/ BRT tonnage vessels


Name No Yard No Builder Laid down Launched Comp Fate Zibens (ex-Djerv) P01   Westermoens BB, Mandal, Norway   28.4.1966 10.1966 // 11.6.2001 stricken 2013 Lode (ex-Hvass) P02   Westermoens BB, Mandal, Norway   20.12.1966 4.1967 // 11.6.2001 stricken 2013 Linga (ex-Gnist) P03   Bergens MV, Norway   18.8.1967 11.1967 // 11.6.2001 stricken 2012 Bulta (ex-Traust) P04   Bergens MV, Norway   18.11.1966 5.1967 // 13.2.1994 stricken 2011

Technical data


Displacement standard, t

100
Displacement full, t

125
Length, m

36.6
Breadth, m

6.20
Draught, m

1.50
No of shafts

2
Machinery

2 Maybach MB872A diesels
Power, h. p.

7200
Max speed, kts

37
Fuel, t

diesel oil
Endurance, nm(kts)

550(36)
Armament

P01-03: 1 x 1 - 76/50 Bofors TAK76, 1 x 1 - 40/70 Bofors 350

P04: 1 x 1 - 12.7/90
Electronic equipment

P01-03: Decca TM1226 radar, TVT-300 e/o system

P04: Decca TM1226 radar
Complement

22


Standard scale images


<i>Linga</i> 2010
Linga 2010


Graphics

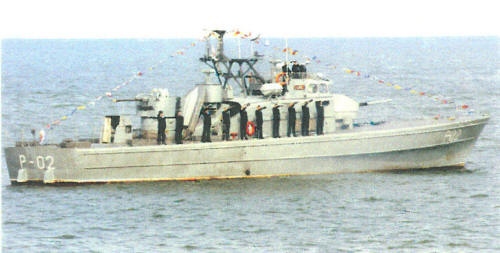

<i>Lode </i>2003
Lode 2003


Project history

Former Norwegian Storm-class attack craft, transferred without missiles and fun fire control radar.

Modernizations

1998, Bulta: + 1 x 1 - 40/60 Mk 3

Naval service

No significant events.
