LSF621 air-cushion landing craft (2005-2006)

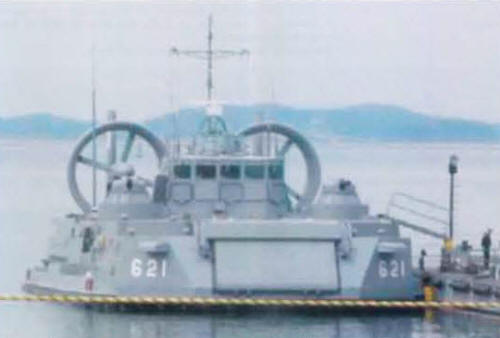

621 2006

Ships


Name No Yard No Builder Laid down Launched Comp Fate
솔개 621 [Solgae 621] LSF621   Khabarovsk SYd, Russia 24.4.2004 22.8.2005 29.9.2005 in service (2019)
솔개 622 [Solgae 622] LSF622   Khabarovsk SYd, Russia 27.11.2004 29.9.2006 15.10.2006 in service (2019)
솔개 623 [Solgae 623] LSF623   Khabarovsk SYd, Russia 4.2005 2006 30.12.2006 in service (2019)


Technical data


Displacement standard, t

132

Displacement normal, t

150

Length, m

31.3

Breadth, m

12.9 hull 14.8 oa

Draught, m

1.60 / 0.00

No of shafts

2 air propellers

Machinery

2 MT-70K gas turbines for lift and propulsion

Power, h. p.

20000

Max speed, kts

55

Fuel, t

gas turbine oil

Endurance, nm(kts)

200(50) (loaded) 500(50) (light)

Armament

1 x 4 Igla-1 SAM (16 9K310), 2 x 6 - 30/54 AK-306, 2 x 1 - 30 BP-30 Plamia grenade launchers, 10 - 24 mines

Military load

1 main battle tank or 2 light tanks or APC or 130 troops or 42 t of cargo

Electronic equipment

Lazur', MR-244-1 Ekran-1 radars

Complement

12



Standard scale images


LSF621<i> </i>2010
LSF621 2010


Graphics


621 2006
621 2006


Project history

Russian Project 12061 Murena.

Modernizations

None.

Naval service

No significant events.
