ULSAN frigates (1981-1993)

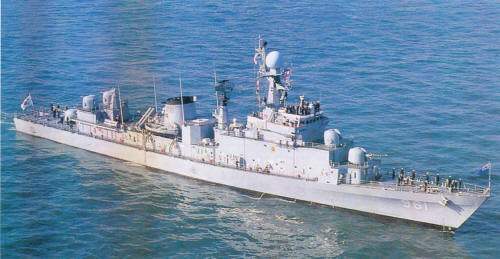

Ulsan 2000

Ships


Name No Yard No Builder Laid down Launched Comp Fate
울산 [Ulsan] 951   Hyundai, Ulsan 1979 8.4.1980 1.1.1981 stricken 12.2014
서울 [Seoul] 952   Hyundai, Ulsan 1982 24.4.1984 30.6.1985 stricken 12.2015
충남 [Chungnam] 953   Korea SB, Pusan 1984 26.10.1984 1.6.1986 stricken 12.2017
마산 [Masan] 955   Korea Tacoma, Masan 1983 26.10.1984 20.7.1985 in service (2019)
경북 [Kyongbuk] 956   Daewoo, Okpo 1984 15.1.1986 30.5.1986 in service (2019)
전남 [Chonnam] 957   Hyundai, Ulsan 1986 19.4.1988 17.6.1989 in service (2019)
제주 [Cheju] 958   Daewoo, Okpo 1986 3.5.1988 1.1.1990 in service (2019)
부산  [Pusan] 959   Hyundai, Ulsan 1990 20.2.1992 1.1.1993 in service (2019)
청주 [Cheongju] 961   Daewoo, Okpo 1990 20.3.1992 1.6.1993 in service (2019)


Technical data


Displacement standard, t

951-953, 955: 1600

956-959, 961: 1720
Displacement full, t

951-953, 955: 2180

956-959, 961: 2300
Length, m

98.0 pp 102.0 oa
Breadth, m

11.5
Draught, m

3.60
No of shafts

2
Machinery

CODOG: 2 General Electric LM-2500 gas turbines / 2 MTU 12V956 TB82 diesels
Power, h. p.

54400 / 6260
Max speed, kts

35
Fuel, t

diesel / gas turbine oil
Endurance, nm(kts)4000(18)
Armament

951-953, 955: 2 x 4 Harpoon SSM (8 RGM-84C), 2 x 1 - 76/62 OTO Melara Compact, 4 x 2 - 30/75 Emerlec EX-30, 2 x 1 - 12.7/90, 2 x 3 - 324 Mk 32 TT, 2 DCR

956-959, 961: 2 x 4 Harpoon SSM (8 RGM-84C), 2 x 1 - 76/62 OTO Melara Compact, 3 x 2 - 40/70 Breda-Bofors Compact Twin 40, 2 x 1 - 12.7/90, 2 x 3 - 324 Mk 32 TT, 2 DCR
Electronic equipment

951-953, 955, 956: DA-05, ZW-06, WM-28 radars, LIROD e/o system, PHS-32 sonar, ULQ-11K ECM suite, 4x SRBOC Mk 36 decoy RL, 2x SLQ-261K decoy RL, SLQ-25 Nixie torpedo decoy, Litton CCS

957-959, 961: DA-05, S-1810, ST-1802, SPS-10 radars, Radamec 2400 e/o system, DE 1167 sonar, ULQ-11K ECM suite, 4x SRBOC Mk 36 decoy RL, 2x SLQ-261K decoy RL, SLQ-25 Nixie torpedo decoy, WSA-423 CCS
Complement

150


Standard scale images


<i>Ulsan </i>2000
Ulsan 2000
<i>Chonnam </i>2010
Chonnam 2010


Graphics


<i>Cheongjiu </i>2001
Cheongjiu 2001
<i>Ulsan </i>2000
Ulsan 2000


Project history

Korean-designed, well-armed, fast general purpose frigates built locally by various shipyards. After the first three the next three units ordered in 1981 and the last in 1984. Steel hull with alloy superstructure. These ships lacks helicopter facilities. Netherlands and British electronic equipment. All equipment and armament bought off-the-shelf from European and American manufacturers.

Modernizations

None.

Naval service

No significant events.
