GOJUN BONG tank landing ships (1993-1999)

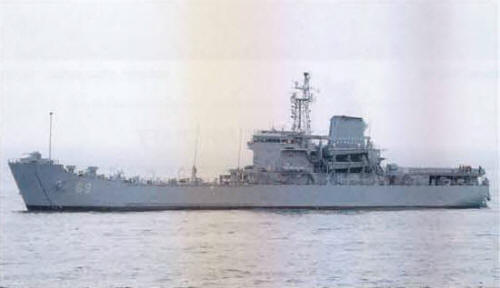

Hyangro Bong 2008

Ships


Name No Yard No Builder Laid down Launched Comp Fate
고준봉 [Gojun Bong] 681   Korea-Tacoma, Masan   4.9.1992 1.7.1993 in service (2019)
비로봉 [Biro Bong] 682   Korea-Tacoma, Masan   18.12.1996 30.11.1997 in service (2019)
향로봉 [Hyangro Bong] 683   Korea-Tacoma, Masan   30.10.1998 30.8.1999 in service (2019)
성인봉 [Sungin Bong] 685   Korea-Tacoma, Masan   4.3.1999 1.12.1999 in service (2019)


Technical data


Displacement standard, t

1900

Displacement full, t4200
Length, m

106.9 pp 112.50 oa

Breadth, m

15.3

Draught, m

3.00

No of shafts2
Machinery

2 SEMT-Pielstick 16PA6 V280 diesels

Power, h. p.

12800

Max speed, kts

15

Fuel, t

diesel oil

Endurance, nm(kts)4500(12)
Armament

681: 2 x 2 - 30/75 Emerlec EX-30, 2 x 3 - 20/76 Sea Vulcan, 4 x 1 - 12.7/90, helicopter deck

682, 683, 685: 1 x 2 - 40/70 Breda-Bofors Compact Twin 40, 2 x 3 - 20/76 Sea Vulcan, 4 x 1 - 12.7/90, helicopter deck

Military load

4 LCVP, (12 tanks, 14 AAAV) or 1800 t cargo, 200 troops

Electronic equipment2x SPS-64 radars, NA-18 e/o system, ECM suite, 1x Dagaie decoy RL
Complement120


Graphics


<i>Hyangro Bong </i>2008
Hyangro Bong 2008


Project history

Replacements for the WWII-era LSTs. Have a helicopter deck aft and resemble LSTs built in South Korea for Venezuela and Indonesia, except that they have a drive-through tank deck and stern ramp. Are able to carry up to 1800t of cargo (690 maximum beaching load) and about 200 troops; up to 17 main battle tanks can be accommodated. The articulating bow ramp extends to 14.5m and is 4.5m wide; the articulating stern ramp extends to 10.9m and is 4.9m wide. A 6.1m-diameter turntable is fitted at the forward end of the tank deck, and there is a 9x4m elevator to the upper deck.

Modernizations

None.

Naval service

No significant events.
