DHEEB AL BAHAR 1 patrol boat (1984)
Dheeb Al Bahar 1 2001
Ships
| Names | Builders | Commissioned | Losses | Transfers | Discarding |
|---|---|---|---|---|---|
1 ذيب البحر [Dheeb Al Bahar 1] |
Watercraft, Shoreham, UK: Dheeb Al Bahar 1 |
1984: Dheeb Al Bahar 1 |
none |
none |
2012: Dheeb Al Bahar 1 |
Technical data
| Displacement standard, t | |
|---|---|
| Displacement full, t | 80 |
| Length, m | 18.0 pp 20.8 oa |
| Breadth, m | 5.80 |
| Draught, m | 1.50 |
| No of shafts | 2 |
| Machinery | 2 MTU 12V396 TB93 diesels |
| Power, h. p. | 3920 |
| Max speed, kts | 38 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 660(22) |
| Armament | 1 x 1 - 20/90 GAM-B01, 2 x 1 - 7.6/90 |
| Electronic equipment | Furuno FR-701 radar |
| Complement | 8 |
Graphics

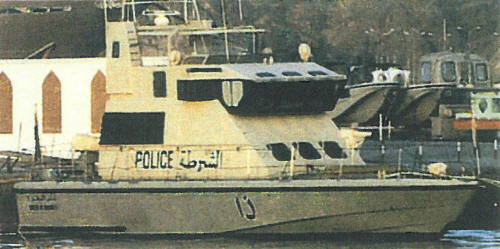

Dheeb Al Bahar 1 2001
Project history
Royal Police. GRP hull.
Modernizations
None.
Naval service
No significant events.
