SEOMJINGANG patrol ship (1999)

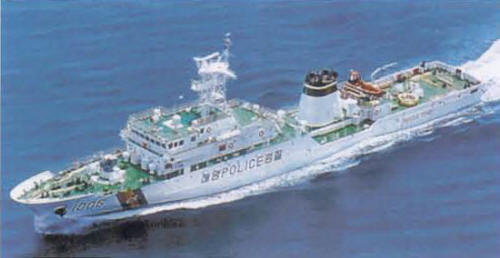

Seomjingang 2006
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| 한강 6 섬진강 [Hangang 6 Seomjingang] | 1006 | Daewoo, Okpo | 22.1.1999 | 20.6.1999 | in service (2019) |
Technical data
| Displacement standard, t | |
|---|---|
| Displacement full, t | 1630 |
| Length, m | 84.0 |
| Breadth, m | 10.4 |
| Draught, m | 3.60 |
| No of shafts | 2 |
| Machinery | 2 Wärtsilä-Nohab 16V25 diesels |
| Power, h. p. | 10000 |
| Max speed, kts | 21 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 4000(18) |
| Armament | 1 x 3 - 20/76 Sea Vulcan, 4 x 1 - 7.6/90 |
| Electronic equipment | 2x radars |
| Complement | 57 |
Graphics
Seomjingang 2006
Project history
Intended for seagoing patrol, salvage, and rescue duties.
Modernizations
None.
Naval service
No significant events.
