8!  HANNURI 5 patrol boats (1997-1998)





Hannuri 25 2008

Ships


Name No Yard No Builder Laid down Launched Comp Fate
해누리 5 [Hannuri 5] 105   Hyundai, Ulsan     1997 in service (2019)
해누리 13 [Hannuri 13] 113   Hyundai, Ulsan     1997 in service (2019)
해누리 18 [Hannuri 18] 118   Hyundai, Ulsan     1997 in service (2019)
해누리 21 [Hannuri 21] 121   Hyundai, Ulsan     1997 in service (2019)
해누리 25 [Hannuri 25] 125   Hyundai, Ulsan     1998 in service (2019)


Technical data


Displacement standard, t
Displacement full, t

110

Length, m

32.2

Breadth, m

6.00

Draught, m

1.40

No of shafts

2

Machinery

2 diesels

Power, h. p.
Max speed, kts

25

Fuel, t

diesel oil

Endurance, nm(kts)
Armament

1 x 1 - 20/70 Mk 10, 2 x 1 - 12.7/90

Electronic equipment

Furuno radar

Complement

19



Graphics

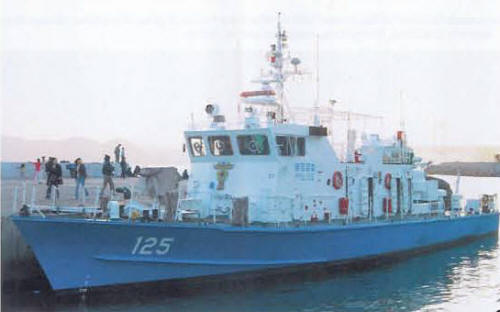

<i>Hannuri 25 </i>2008
Hannuri 25 2008


Project history

100t class.

Modernizations

None.

Naval service

No significant events.
