JAEMIN 1 patrol ship (1988)

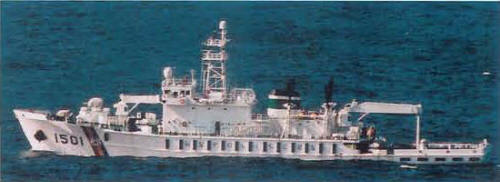

Jaemin 1 2000
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| 제민 1 [Jaemin 1] | 1501 | Daewoo, Okpo | 28.12.1987 | 26.5.1988 | in service (2019) |
Technical data
| Displacement standard, t |
|
|---|---|
| Displacement full, t | 2200 |
| Length, m | 77.6 |
| Breadth, m | 13.5 |
| Draught, m | 4.20 |
| No of shafts | 2 |
| Machinery | 2 MTU 16V1163 TB62 diesels |
| Power, h. p. | 8000 |
| Max speed, kts | 18 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 4500(12) |
| Armament | 1 x 3 - 20/76 Sea Vulcan |
| Military load | 2 LCVP |
| Electronic equipment | 2x radars |
| Complement | 92 |
Graphics
Jaemin 1 2000
Project history
Modeled after the USN Bolster class but is much larger. Has telescoping hydraulic cranes fore and aft. Can lay and recover a four-point mooring. Carries two LCVP-type workboats. Equipped for ocean towing. Hull sides are heavily reinforced with rubbing strakes.
Modernizations
None.
Naval service
No significant events.
