EIJO auxiliary minelayers (1945)

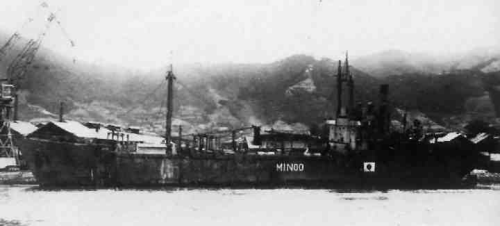

Mino 1945

Ships


Name No Yard No Builder Laid down Launched Comp Fate
永承 [Eijo]     Kiangnan, Shanghai, China / Kure K K 1944 1944 3.1945 sunk 17.6.1945
箕面 [Mino]     Naniwa, Osaka / Kure K K 11.1944 13.5.1945 8.1945 captured 8.1945, BU 1947
1822号艦 [1822-go]     Naniwa, Osaka 2.1945 1947 ---// 6.1948 completed mercantile


100 - 1000 t displacement/ BRT tonnage vessels


Name No Yard No Builder Laid down Launched Comp Fate 永承 [Eijo]     Kiangnan, Shanghai, China / Kure K K 1944 1944 3.1945 sunk 17.6.1945 箕面 [Mino]     Naniwa, Osaka / Kure K K 11.1944 13.5.1945 8.1945 captured 8.1945, BU 1947 1822号艦 [1822-go]     Naniwa, Osaka 2.1945 1947 ---// 6.1948 completed mercantile

Technical data


Displacement standard, t

3224

Displacement normal, t

5200

Length, m

85.0 pp 88.3 wl 91.7 oa

Breadth, m

13.4

Draught, m

5.90

No of shafts

1

Machinery

Eijo: 1 VTE, 1 boiler

Mino, No1822: 1 set geared steam turbine, 1 cylindrical boiler

Power, h. p.

1200

Max speed, kts

11

Fuel, t

coal

Endurance, nm(kts)
Armament

1 x 1 - 120/45 10-shiki, 2 x 3 - 25/60 96-shiki, 2 x 2 - 25 96-shiki, 4 x 1 - 25 96-shiki, 380 mines, 2 DCT (24)

Electronic equipment3-shiki 1-go radar, 5-shiki hydrophone
Complement


Standard scale images


<i>Mino</i> 1945
Mino 1945


Graphics


<i>Mino</i> 1945
Mino 1945


Project history

Originally built as standard cargo vessels of 2D type (2DRS and 2DT respectively) (2247BRT). Under the 1944 programme it has been decided to convert three vessels to minelayers. They were requisitioned late - early 1945 and towed off to Kure DYd, where their conversion has begun. Under design mines placed in specially arranged hold between engine and boiler rooms. Holds can be used for general cargo. Conversion of third ship has been suspended in March, 1945. After war she was completed as a merchant vessel.

Modernizations

none

Naval service

Eijo 17.6.1945 was sunk W off Hokkaido by US submarine Spadefish.
