11-GO fast attack craft (torpedo) (1971 - 1975)

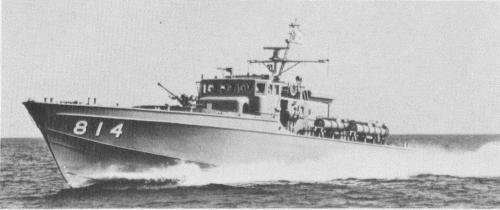

14-go 1976
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| 11号 [11-go] | PT811 | Mitsubishi, Shimonoseki | 17.3.1970 | 27.3.1971 | stricken 11.1990 | ||
| 12号 [12-go] | PT812 | Mitsubishi, Shimonoseki | 22.4.1971 | 28.3.1972 | stricken 10.1991 | ||
| 13号 [13-go] | PT813 | Mitsubishi, Shimonoseki | 28.3.1972 | 16.12.1972 | stricken 10.1991 | ||
| 14号 [14-go] | PT814 | Mitsubishi, Shimonoseki | 27.3.1973 | 15.2.1974 | stricken 3.1993 | ||
| 15号 [15-go] | PT815 | Mitsubishi, Shimonoseki | 23.4.1974 | 10.7.1975 | stricken 10.1994 |
Technical data
| Displacement standard, t | 100 |
|---|---|
| Displacement full, t | 140 |
| Length, m | 35.0 |
| Breadth, m | 9.20 |
| Draught, m | 1.20 |
| No of shafts | 3 |
| Machinery | 811: CODAG: 2 Mitsubishi 24WZ-30MC diesels + 2 IHI IM-300 gas turbines 812-815: CODAG: 2 Mitsubishi 24WZ-31MC diesels + 2 IHI IM-300 gas turbines |
| Power, h. p. | 811: 6000 + 4500 = 10500 812-815: 6600 + 4400 = 11000 |
| Max speed, kts | 40 |
| Fuel, t | diesel / gas turbine oil |
| Endurance, nm(kts) |
|
| Armament | 2 x 1 - 40/60 Mk 3, 4 - 533 HO-101B TT |
| Electronic equipment | OPS-13 radar |
| Complement | 26 - 28 |
Standard scale images
11-go 1980
Graphics
14-go 1976
Project history
Mass-produced MTBs.
Modernizations
None.
Naval service
No significant events.
