YF2150 landing craft (2003-2005)





YF2150 2007

Ships


Names Builders Commissioned Losses Transfers Discarding

YF2150, 2151

Universal, Keihin: YF2150, 2151

2003: YF2150

2005: YF2151

none

none

in service (2018): YF2150, 2151



Technical data


Displacement standard, t
Displacement full, t

50

Length, m

19.8

Breadth, m

5.40

Draught, m

2.30

No of shafts

2 waterjets

Machinery

2 Mitsubishi S12R-MTK diesels

Power, h. p.

3000

Max speed, kts

16

Fuel, t

diesel oil

Endurance, nm(kts)

130(9)

Armament

none

Military load

100 troops

Complement

4



Graphics

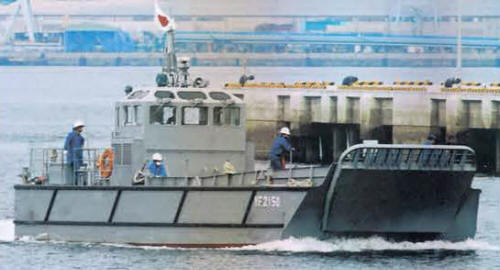

YF2150 2007
YF2150 2007


Project history

Design based on U.S. LCM(6) landing craft. Employed as local transports for stores and personnel.

Modernizations

None.

Naval service

No significant events.
