KATORI medium patrol vessels (2016-2019)

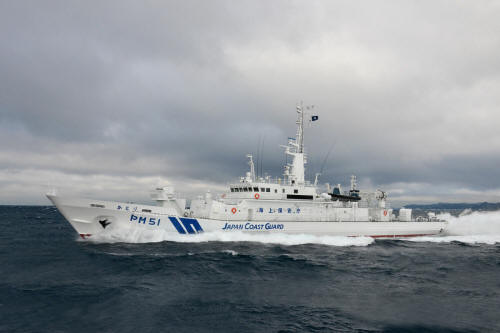

Katori 2016
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| かとり [Katori] | PM51 | Japan Marine United, Tsurumi | 28.11.2016 | in service (2019) | |||
| いしかり [Ishikari] | PM52 | Japan Marine United, Tsurumi | 27.2.2017 | in service (2019) | |||
| とかち [Tokachi] | PM53 | Japan Marine United, Tsurumi | 29.9.2017 | in service (2019) | |||
| いよ [Iye] | PM54 | Japan Marine United, Tsurumi | 22.11.2017 | in service (2019) | |||
| ひたち [Hitachi] | PM55 | Japan Marine United, Tsurumi | 28.2.2018 | in service (2019) | |||
| きたかみ [Kitakami] | PM56 | Japan Marine United, Tsurumi | 28.2.2018 | in service (2019) | |||
| そらち [Sorachi] | PM57 | Japan Marine United, Tsurumi | 27.9.2018 | in service (2019) | |||
| なつい [Natsui] | PM58 | Japan Marine United, Tsurumi | 31.1.2019 | in service (2019) |
Technical data
| Displacement standard, t | 650 |
|---|---|
| Displacement normal, t | ~750 |
| Length, m | 72.0 |
| Breadth, m | 10.0 |
| Draught, m | |
| No of shafts | 2 waterjets |
| Machinery | 2 diesels |
| Power, h. p. | |
| Max speed, kts | 25 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | |
| Armament | 1 x 3 - 20/76 JM-61-MB Sea Vulcan |
| Electronic equipment | 2x JMA radars, e/o director |
| Complement |
Graphics
Katori 2016
Project history
Fast medium patrols.
Modernizations
None.
Naval service
No significant events.
