NAVYPEDIA


Nasur 4 2008

Ships

Names	Builders	Commissioned	Losses	Transfers	Discarding
P101 1 ناصر [Nasur 1] P102 2 ناصر [Nasur 2] P103 3 ناصر [Nasur 3] P104 4 ناصر [Nasur 4] P105 5 ناصر [Nasur 5]	Nanhua HSEC, Wuhan, China: P101-105	2004: P101-105	none	none	in service (2019): P101-105

Technical data

Displacement standard, t
Displacement full, t	70
Length, m	27.1
Breadth, m	3.80
Draught, m	1.80
No of shafts	2
Machinery	2 MTU 12V396 TE742 diesels
Power, h. p.	4025
Max speed, kts	32
Fuel, t	diesel oil
Endurance, nm(kts)	2100(16)
Armament	1 x 1 - 12.7/79, 1 x 1 - 7.6/90
Electronic equipment	JRC radar
Complement	12

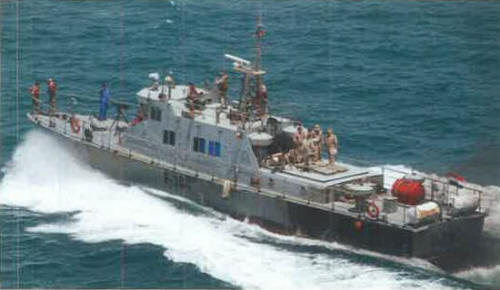

Graphics

Project history

HSEC Predator class. First vessels of newly formed Iraqi Coastal Defence Force, later again Iraqi Navy. They were originally to have arrived in 2002 under the oil-for-food program but were not allowed to enter the country due to their military abilities. Boats were transferred only 4.5.2004 when Saddam Hussein was killed.

Modernizations

None.

Naval service

No significant events.
