FATEH large patrol craft (2009-2010)

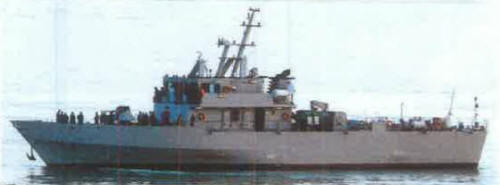

Majeed 2009
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| ناصر [Nasir] | 701 | Fincantieri, Rivo Trigoso or Muggiano, Italy | 4.2008 | 15.4.2009 | 8.10.2010 | in service (2019) | |
| فتح [Fateh] | 702 | Fincantieri, Rivo Trigoso or Muggiano, Italy | 11.1.2008 | 2009 | 21.6.2009 | in service (2019) | |
| ماجد [Majed] | 703 | Fincantieri, Rivo Trigoso or Muggiano, Italy | 7.2008 | 2009 | 14.2.2010 | in service (2019) | |
| سهمك [Shimook] | 704 | Fincantieri, Rivo Trigoso or Muggiano, Italy | 10.2008 | 2010 | 14.2.2010 | in service (2019) |
Technical data
| Displacement standard, t | 390 |
|---|---|
| Displacement full, t | 427 |
| Length, m | 47.2 pp 53.4 oa |
| Breadth, m | 8.10 |
| Draught, m | 2.50 |
| No of shafts | 2 |
| Machinery | 2 Isotta-Fraschini V1716 T2MSD diesels |
| Power, h. p. | 6335 |
| Max speed, kts | 23 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 1800(16) |
| Armament | 1 x 1 - 30/82 Marlin, 2 x 1 - 12.7/90, 4 x 1 - 7.6/90 |
| Electronic equipment | 2x nav. radars |
| Complement | 30 + 12 passengers |
Graphics
Majeed 2009
Project history
Ordered under 2006 contract, also known as Saettia Mk 4 class. Fitted with a stern ramp for 11m RIB.
Modernizations
None.
Naval service
No significant events.
