KAPITAN PATIMURA corvettes (1981-1985/1993-1996)

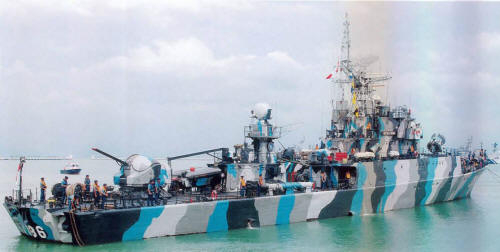

Silas Papare 2005 Many thanks to Wolfgang Stöhr for additional information on this page.
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comm | Fate |
|---|---|---|---|---|---|---|---|
| Kapitan Patimura (ex-Prenzlau) | 371 | 354 | Peenewerft, Wolgast, East Germany | 15.9.1980 | 26.6.1981 | 11.5.1983 // 23.9.1993 | in service (2019) |
| Untung Suropati (ex-Ribnitz-Damgarten) | 372 | 356 | Peenewerft, Wolgast, East Germany | 1.4.1981 | 1982 | 29.10.1983 // 23.9.1993 | in service (2019) |
| Nuku (ex-Waren) | 373 | 353 | Peenewerft, Wolgast, East Germany | 9.6.1980 | 27.3.1981 | 23.11.1982 // 15.12.1993 | in service (2019) |
| Lambung Mangkurat (ex-Angermünde) | 374 | 361 | Peenewerft, Wolgast, East Germany | 1983 | 26.7.1985 // 12.7.1994 | in service (2019) | |
| Cut Nyak Dien (ex-Lübz) | 375, 2008- 875, 2010- 375 | 350 | Peenewerft, Wolgast, East Germany | 2.10.1979 | 11.6.1980 | 12.2.1982 // 25.2.1994 | in service (2019) |
| Sultan Thaha Syaifuddin (ex-Bad Doberan) | 376 | 351 | Peenewerft, Wolgast, East Germany | 15.12.1979 | 30.9.1980 | 30.6.1982 // 25.2.1994 | in service (2019) |
| Sutanto (ex-Wismar) | 377 | 346 | Peenewerft, Wolgast, East Germany | 2.10.1978 | 6.7.1979 | 9.7.1981 // 10.3.1995 | in service (2019) |
| Sutedi Senoputra (ex-Parchim) | 378 | 347 | Peenewerft, Wolgast, East Germany | 9.1.1979 | 9.10.1979 | 9.4.1981 // 19.9.1994 | in service (2019) |
| Wiratno (ex-Perleberg) | 379 | 348 | Peenewerft, Wolgast, East Germany | 2.4.1979 | 15.1.1980 | 19.9.1981 // 19.9.1994 | in service (2019) |
| Memet Sastrawiria (ex-Bützow) | 380, 2008- 880 | 349 | Peenewerft, Wolgast, East Germany | 2.7.1979 | 12.3.1980 | 30.12.1981 // 2.6.1995 | wrecked 8.2008, stricken |
| Tjiptadi (ex-Bergen) | 381 | 360 | Peenewerft, Wolgast, East Germany | 1983 | 1.2.1985 // 10.5.1996 | in service (2019) | |
| Hasan Basri (ex-Güstrow) | 382 | 352 | Peenewerft, Wolgast, East Germany | 3.3.1980 | 31.12.1980 | 10.11.1982 // 10.5.1996 | in service (2019) |
| Imam Bonjol (ex-Teterow) | 383 | 357 | Peenewerft, Wolgast, East Germany | 1.7.1981 | 27.3.1982 | 27.1.1984 // 26.4.1994 | in service (2019) |
| Pati Unus (ex-Ludwigslust) | 384, 2008- 884, 2010- 384 | 355 | Peenewerft, Wolgast, East Germany | 15.12.1980 | 1.10.1981 | 4.7.1983 // 21.7.1995 | wrecked 13.5.2016 |
| Teuku Umar (ex-Grevesmühlen) | 385, 2008- 885, 2010- 385 | 359 | Peenewerft, Wolgast, East Germany | 3.9.1982 | 21.9.1984 // 12.7.1996 | in service (2019) | |
| Silas Papare (ex-Gadebusch) | 386, 2008- 886, 2010- 386 | 358 | Peenewerft, Wolgast, East Germany | 1981 | 1982 | 31.8.1984 // 27.10.1996 | in service (2019) |
Technical data
| Displacement standard, t | 800 |
|---|---|
| Displacement full, t | 900 |
| Length, m | 69.0 pp 75.2 oa |
| Breadth, m | 8.95 wl 9.78 oa |
| Draught, m | 2.65 hull 4.40 sonar |
| No of shafts | 3 |
| Machinery | 3 M-504A diesels |
| Power, h. p. | 14250 |
| Max speed, kts | 24.3 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 2200(14) |
| Armament | 2 x 4 Fasta SAM (16 Strela-2), 1 x 2 - 57/70 AK-725, 1 x 2 - 30/71 AK-230, 4 - 400 TT, 2 x 12 RBU-6000 ASWRL, 2 DCR (12) |
| Electronic equipment | TSR-333, MR-302 Rubka, MR-123 Vympel radars, MG-332T, MG-349M sonars, 2x Baklan-B ECM suites, 2x PK-16 decoy RL |
| Complement | 80 |
Standard scale images
Kapitan Patimura 2000
Graphics
Silas Papare 2005 Many thanks to Wolfgang Stöhr for additional information on this page.
Project history
Former Volksmarine corvettes built by VEB Peenewerft, Wolgast. Following the reunification of Germany a few remained in service with the Bundesmarine for a short period. Formally transferred to Indonesia on 25 August 1993. All refitted prior to transfer, with increased range and air-conditioning fitted in accommodation spaces, retaining original armament. Good sea boats with a good turn of speed, but their multi-cylinder Soviet engines have proved a constant source of trouble.
Modernizations
2002-2007, Kapitan Patimura, Wiratno, Memet Sastrawiria, Hasan Basri, Imam Bonjol, Silas Papare: - 2 M-504A diesels; + 2 MTU 16V4000M90 diesels (7300hp, 12050hp at all, 25kts)
2002-2007, Untung Suropati, Nuku, Lambung Mangkurat, Sutanto, Sutedi Senoputra, Tjiptadi: - 2 M-504A diesels; + 2 Deutz TBD620V diesels (6000hp, 10750hp at all, 24kts)
2002-2007, Cut Nyak Dien, Sultan Thaha Syaifuddin, Pati Unus, Teuku Umar: - 2 M-504A diesels; + 2 Caterpillar CAT3516B diesels (5200hp, 9950hp at all, 24kts)
late 2010s, Teuku Umar: - 4 - 400 TT; + 2 x 3 - 324 Mk 32 TT
2016, Sultan Thaha Syaifuddin, Silas Papare: - 1 x 2 - 30/71; + 1 x 7 - 30/77 type 730
Naval service
Memet Sastrawiria was accidentally damaged in August 2008 and was stricken as total loss. Pati Unus wrecked 13.5.2016 near Belawan.
Many thanks to Wolfgang Stöhr for additional information on this page.
