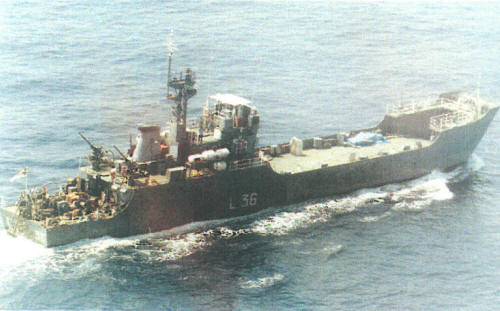

L36 1999

Ships

Name	No	Yard No	Builder	Laid down	Launched	Comp.	Fate	Modification
	L31		Goa SYd			1978	stricken 2002	LCU Mk I
	L32		Goa SYd			1978	stricken 4.2011	LCU Mk I
	L33		Hoogly Dock, Calcutta			1980	stricken 2002	LCU Mk II
	L34		Hoogly Dock, Calcutta		29.11.1977	28.1.1980	stricken 4.2011	LCU Mk II
	L35		Hoogly Dock, Calcutta		16.3.1980	17.12.1983	stricken 2015	LCU Mk II
	L36		Goa SYd			18.7.1986	stricken 2.2018	LCU Mk III
	L37		Hoogly Dock, Calcutta			18.10.1986	stricken 2.2018	LCU Mk III
	L38		Goa SYd			10.12.1986	in service (2019)	LCU Mk III
	L39		Hoogly Dock, Calcutta			25.3.1987	in service (2019)	LCU Mk III

Technical data

Displacement standard, t
Displacement full, t	500
Length, m	53.2 pp 57.5 oa
Breadth, m	8.20
Draught, m	1.57 - 1.71 aft
No of shafts	3
Machinery	3 Kirloskar-MAN R8V16/18 TL diesels
Power, h. p.	1690
Max speed, kts	11
Fuel, t	diesel oil
Endurance, nm(kts)	1000(8)
Armament	2 x 1 - 40/60 Mk 3
Military load	120 troops or 250 t cargo or 2 light tanks
Electronic equipment	Decca 1229 radar
Complement	47

Standard scale images

Graphics

Project history

Indigenious design of LCU.

Modernizations

None.

Naval service

No significant events.
