C01 patrol boats (1980, 1980/1982)
1983
Ships
| Names | Builders | Completed | Losses | Transfers | Discarding |
|---|---|---|---|---|---|
C01 - 06 C62, 63 |
Swallow Craft, Pusan, South Korea: C01-06, 62, 63 |
7/1980: C01-06 1980 // 22.5.1982: C62, 63 |
none |
None |
1996: C03 2000: C62 2001: C02, 06 late 2000s: C01, 04, 05, 63 |
Technical data
| Displacement standard, t | 32 |
|---|---|
| Displacement full, t | 35 |
| Length, m | 20.0 |
| Breadth, m | 4.80 |
| Draught, m | 1.30 |
| No of shafts | 2 |
| Machinery | 2 General Motors Detroit Diesel 12V71TA diesels |
| Power, h. p. | 840 |
| Max speed, kts | 20 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 400(20) |
| Armament | 1 x 1 - 7.6/90 |
| Electronic equipment | radar |
| Complement | 8 |

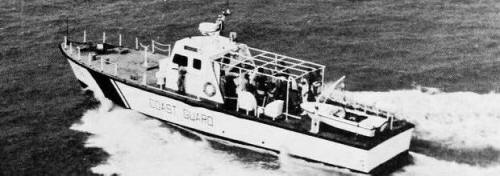

Graphics
1983
Project history
South Korean Swallow 54 design. C62 and 63 were taken over from India Oil Corp.
Modernizations
None.
Naval service
No significant events.
