VEER missile patrol craft (1987-1997)





Prahar 2001

Ships


Name No Yard No Builder Laid down Launched Comp Fate
वीर [Veer] K40   Vympel, Rybinsk, USSR   10.1986 12.5.1987 stricken 4.2016
निर्भीक [Nirbhik] K41   Vympel, Rybinsk, USSR   10.1987 21.12.1987 stricken 1.2018
निपट [Nipat] K42   Vympel, Rybinsk, USSR   11.1988 15.1.1989 stricken 4.2016
निशंक [Nishank] K43   Vympel, Rybinsk, USSR   6.1989 2.9.1989 in service (2019)
निर्घट [Nirghat] K44   Vympel, Rybinsk, USSR   3.1990 4.6.1990 stricken 1.2018
विभूति [Vibhuti] K45   Mazagon Dock, Bombay   26.4.1990 3.6.1991 in service (2019)
विपुल [Vipul] K46   Mazagon Dock, Bombay   3.1.1991 16.3.1992 in service (2019)
विपुल [Vinash] K47   Goa SYd   24.1.1992 20.11.1993 in service (2019)
विद्युत् [Vidyut] K48   Goa SYd   12.12.1992 16.1.1995 in service (2019)
नाशक [Nashak] K83   Mazagon Dock, Mumbai   12.11.1993 29.12.1994 in service (2019)
प्रहार [Prahar] K98   Mazagon Dock, Mumbai   26.8.1995 1.3.1997 collision 21.4.2006


100 - 1000 t displacement/ BRT tonnage vessels


Name No Yard No Builder Laid down Launched Comp Fate वीर [Veer] K40   Vympel, Rybinsk, USSR   10.1986 12.5.1987 stricken 4.2016 निर्भीक [Nirbhik] K41   Vympel, Rybinsk, USSR   10.1987 21.12.1987 stricken 1.2018 निपट [Nipat] K42   Vympel, Rybinsk, USSR   11.1988 15.1.1989 stricken 4.2016 निशंक [Nishank] K43   Vympel, Rybinsk, USSR   6.1989 2.9.1989 in service (2019) निर्घट [Nirghat] K44   Vympel, Rybinsk, USSR   3.1990 4.6.1990 stricken 1.2018 विभूति [Vibhuti] K45   Mazagon Dock, Bombay   26.4.1990 3.6.1991 in service (2019) विपुल [Vipul] K46   Mazagon Dock, Bombay   3.1.1991 16.3.1992 in service (2019) विपुल [Vinash] K47   Goa SYd   24.1.1992 20.11.1993 in service (2019) विद्युत् [Vidyut] K48   Goa SYd   12.12.1992 16.1.1995 in service (2019) नाशक [Nashak] K83   Mazagon Dock, Mumbai   12.11.1993 29.12.1994 in service (2019) प्रहार [Prahar] K98   Mazagon Dock, Mumbai   26.8.1995 1.3.1997 collision 21.4.2006

Technical data


Displacement standard, t

385

Displacement full, t

455

Length, m

56.1

Breadth, m

10.2

Draught, m

2.20

No of shafts

2

Machinery

2 M-15E gas turbine units (each consist of M-75 cruising gas turbine and M-70 boost gas turbine)

Power, h. p.

10000 + 24000 = 34000

Max speed, kts

43

Fuel, t

diesel oil

Endurance, nm(kts)

2200(14)

Armament

2 x 2 P-20M Termit SSM (4 P-20M), 1 x 4 Strela-3M SAM (16 9M36M), 1 x 1 - 76/59 AK-176M, 2 x 6 - 30/54 AK-630M

Electronic equipment

K40-44: Garpun-E, MR-123 Vympel-A, Kivach-2 radars, Ajanta ECM suite, 2x PK-16 decoy RL

K45-48, 83, 98: Aparna, MR-123 Vympel-A, BridgeMaster-E radars, Ajanta ECM suite. 2x PK-16 decoy RL

Complement

37



Standard scale images


<i>Nirbhik </i>2000
Nirbhik 2000


Graphics

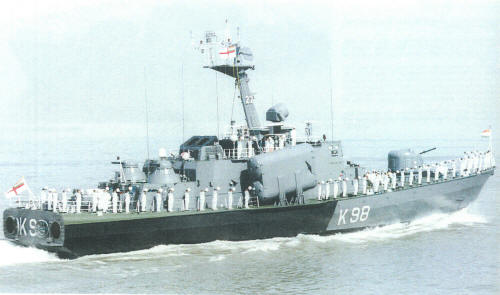

<i>Prahar </i>2001
Prahar 2001


Project history

Soviet project 1241RE, later ships built in India have partly Indian electronics.

Modernizations

mid-2010s, Vipul: - MR-123 Vympel-A radar; + Lynx radar

Naval service

No significant events.
