FIGHTING SHIPS OF THE WORLD
HONG KONG
COASTAL FORCES
PL60 patrol boats (1980-1981)
PL66 2002
Ships
| Names | Builders | Commissioned | Losses | Transfers | Discarding |
|---|---|---|---|---|---|
PL60 PL61 Pisces PL62 PL63 PL64 PL65 Cetus PL66 Dorado PL67 PL68 |
Chung Wah SB, Kowloon: PL60-68 |
1980: PL60-67 1981: PL68 |
None |
China, 1997: PL60-68 (PL60-68) |
none |
Technical data
| Displacement standard, t | |
|---|---|
| Displacement full, t | 86 |
| Length, m | 26.2 |
| Breadth, m | 5.90 |
| Draught, m | 1.80 |
| No of shafts | 3 |
| Machinery | 2 MTU 12V396 TC82 diesels + 1 MAN D2566 diesel |
| Power, h. p. | 2600 + 195 = 2600 |
| Max speed, kts | 23 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 1400(8) |
| Armament | 1 x 1 - 12.7/90 |
| Electronic equipment | Decca 150 radar |
| Complement | 14 |
Graphics

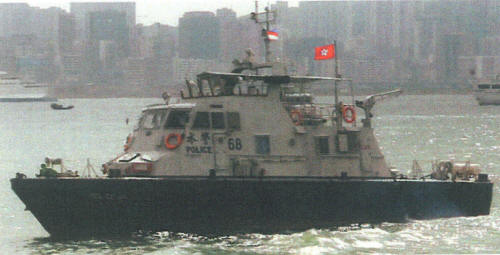

PL66 2002
Project history
Damen Mk I design.
Modernizations
None.
Naval service
No significant events.
