RAJAWALI II patrol boats (1993)
Rentap 2010
Ships
| Names | Builders | Completed | Losses | Transfers | Discarding |
|---|---|---|---|---|---|
Rajawali II, 4.2006- 2201 Nusa Rajawali III, 4.2006- 2202 Rentap |
Malaysia: Rajawali II, III |
1993: Rajawali II, III |
none |
none |
in service (2019): 2201, 2202 |
Technical data
| Displacement standard, t | |
|---|---|
| Displacement full, t | 53 |
| Length, m | 22.0 |
| Breadth, m | 6.00 |
| Draught, m | 1.30 |
| No of shafts | 2 |
| Machinery | 2 Deutz 16M816CR diesels |
| Power, h. p. | |
| Max speed, kts | 25 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | |
| Armament | small arms |
| Electronic equipment | radar |
| Complement | 14 |
Graphics

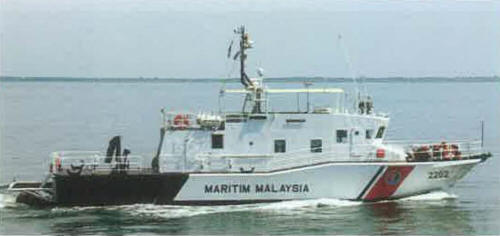

Rentap 2010
Project history
Marine Department.
Modernizations
None.
Naval service
In 2006 both were transferred to Maritime Enforcement Agency.
