BAD BRAMSTEDT patrol ships (2002-2003)

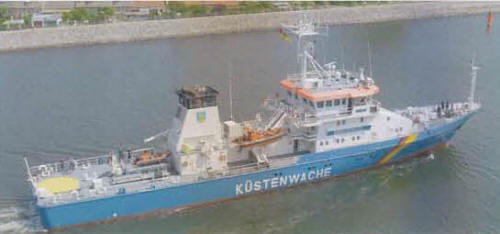

Eschwege 2008
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| Bad Bramstedt | BG24, 7.2005- BP24 | Yantar', Kaliningrad, Russia // Abeking & Rasmussen, Lemwerder | 16.11.2001 | 19.11.2002 | in service (2019) | ||
| Bayreuth | BG25, 7.2005- BP25 | Yantar', Kaliningrad, Russia // Abeking & Rasmussen, Lemwerder | 2002 | 2.5.2003 | in service (2019) | ||
| Eschwege | BG26, 7.2005- BP26 | Yantar', Kaliningrad, Russia // Abeking & Rasmussen, Lemwerder | 23.4.2003 | 18.12.2003 | in service (2019) |
Technical data
| Displacement standard, t | 800 |
|---|---|
| Displacement full, t | 931 |
| Length, m | 60.2 pp 65.9 oa |
| Breadth, m | 10.6 |
| Draught, m | 3.50 |
| No of shafts | 1 |
| Machinery | 2 MTU 16V1163 diesel-generators, 1 Siemens AM400M4F electric motor // 1 electric motor |
| Power, h. p. | 7070 / 1073 |
| Max speed, kts | 21.5 |
| Fuel, t | diesel oil 115 |
| Endurance, nm(kts) | 6500(12) |
| Armament | helicopter deck |
| Electronic equipment | 2x radars |
| Complement | 24 + 6 passengers |
Standard scale images
Bad Bramstedt 2010
Graphics
Eschwege 2008
Project history
Border Guard (since 2005 Border Police). Ordered in 2000. Helicopter deck is capable of accepting an NH-90 helicopter. Aluminum alloy superstructure. All three are dual-assigned to the Coast Guard (Küstenwache) and are used for EEZ and pollution control, and maritime safety and security duties. The hulls were built in Russia. They carry a 30kt RIB.
Modernizations
None.
Naval service
No significant events.
