TBILISI attack hydrofoil (missile) (1981/1999)

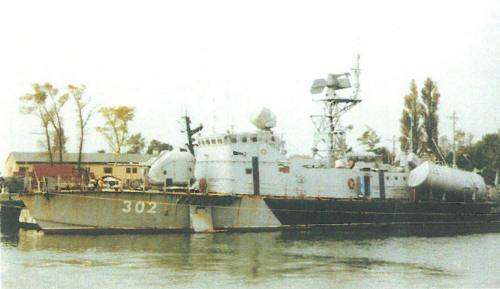

Tbilisi 2002
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| თბილისი [Tbilisi] (ex-Конотоп [Konotop], ex-Р-15 [R-15]) | 302 | 250 | Sredne-Nevskiy SYd, Pontonny, USSR | 29.10.1981 // 30.6.1999 | destroyed 14.8.2008 |
Technical data
| Displacement standard, t | 233 |
|---|---|
| Displacement full, t | 257 |
| Length, m | 39.5 |
| Breadth, m | 7.60 |
| Draught, m | 2.00 hull |
| No of shafts | 3 |
| Machinery | 3 M-520 diesels |
| Power, h. p. | 15000 |
| Max speed, kts | 43 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 2000(12) |
| Armament | 2 x 1 P-15M Termit SSM (2 4K51), 1 x 4 Strela-3M SAM (16 9M36M), 1 x 1 - 76/59 AK-176M, 1 x 6 - 30/54 AK-630M |
| Electronic equipment | 4Ts53 Garpun, MR-123 Vympel-A radars, 2x PK-16 decoy RL |
| Complement | 29 |
Standard scale images
Tbilisi 1999
Graphics
Tbilisi 2002
Project history
Former Soviet project 206MR hydrofoil, transferred by Russia to Ukraine in 1997 and by Ukraine to Georgia in 1999.
Modernizations
None.
Naval service
Tbilisi was destroyed 13-14.8.2008 at Poti by Russian troops.
