ANGTHONG tank landing ships (1944-1945/1947-1975)





Chang 1967

Ships


Name No Yard No Builder Laid down Launched Comm Fate
อ่างทอง [Angthong] (ex-LST294) 1   American Bridge, Pittsburgh, USA 10.1943 15.12.1943 1.1944 // 1947 stricken 1985
แ้ฟืเ [Chang] (ex-Lincoln County, ex-LST898, ex-T-LST898, ex-LST898) 2, 1992- 712   Dravo, Pittsburgh, USA 10.1944 25.11.1944 12.1944 // 8.1962 stricken 2006
ย้ฟืเเฟื [Phangan] (ex-Stark County, ex-LST1134) 3, 1992- 713   Chicago Bridge, Seneca, USA 12.1944 16.3.1945 4.1945 // 5.1966 stricken 2008
สฟืะฟ [Lanta] (ex-Stone County, ex-LST1141) 4, 1992- 714   Chicago Bridge, Seneca, USA 1.1945 18.4.1945 5.1945 // 8.1973 stricken 2009
ยพฟะ้นืเ [Prathong] (ex-Dodge County, ex-LST722) 5, 1992- 715   Jeffersonville, USA 7.1944 21.8.1944 9.1944 // 12.1975 stricken 2009


Technical data


Displacement standard, t

1625

Displacement full, t4080
Length, m

96.3 wl 100.0 oa

Breadth, m

15.2

Draught, m

landing: 1.19 fore, 3.00 aft, sea-going: 2.30 fore, 4.30 aft

No of shafts2
Machinery

2 General Motors diesels

Power, h. p.

1800

Max speed, kts

12.1

Fuel, t

diesel oil 590

Endurance, nm(kts)24000 (9)
Armament

1: 1 x 2 - 40/60 Mk 1, 5 x 1 - 40/60 Mk 3, 12 x 1 - 20/70 Mk 10

2-5: 2 x 2 - 40/60 Mk 1, 4 x 1 - 40/60 Mk 3, 4 x 1 - 20/70 Mk 10

Military load

4 LCVP, 20 medium tanks (25-t) or 500t of cargo, 163 marines

Electronic equipment

1: SO-8 radar

2, 4, 5: SPS-5 radar

3: SPS-10 radar

Complement80 - 157


Standard scale images


<i>Angthong</i> 1950
Angthong 1950
<i>Lanta </i>1980
Lanta 1980


Graphics

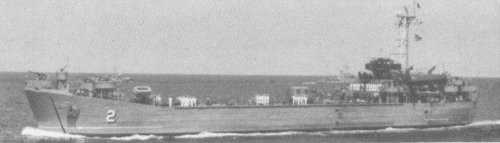

<i>Chang </i>1967
Chang 1967

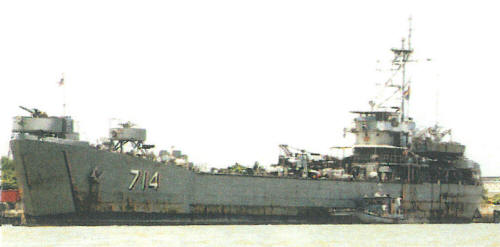

<i>Lanta </i>2002
Lanta 2002


Project history

Former US LST class tank landing ships. All had tripod masts (Angthong recieved it in Thai service).

Modernizations

1960s, Anthong: - 1 x 1 - 40/60, 8 x 1 - 20/70; + 1 x 2 - 40/60

1970s, Angthong, Phangan, Lanta, Prathong: + 2 x 1 - 20/85 GAM-B01

1970s, Chang: + 2 x 1 - 12.7/90

1990s, all: radar was replaced by Decca TM1229

Naval service

No significant events.
