PRÉSIDENT ALBERT BERNARD BONGO patrol boat (1972)
Président Albert Bernard Bongo 1972
Ships
| Names | Builders | Completed | Losses | Transfers | Discarding |
|---|---|---|---|---|---|
GC02 Président Albert Bernard Bongo, 1985- GC02 Colonel Djoué Dabany, 1988- GC02 Président Albert Bernard Bongo |
CN de l'Estérel, Cannes, France: GC02 |
1972: GC02 |
none |
none |
1989: GC02 |
Technical data
| Displacement standard, t | 80 |
|---|---|
| Displacement full, t | |
| Length, m | 32.0 |
| Breadth, m | 5.80 |
| Draught, m | 1.50 |
| No of shafts | 2 |
| Machinery | 2 MTU diesels |
| Power, h. p. | 5400 |
| Max speed, kts | 30 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 1500(15) |
| Armament | 2 x 1 - 20/90 F2 |
| Electronic equipment | radar |
| Complement | 17 |
Graphics

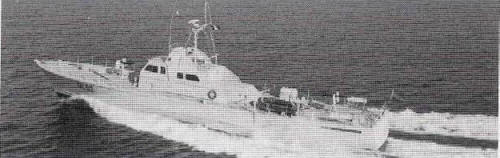

Président Albert Bernard Bongo 1972
Project history
Wooden hull.
Modernizations
None.
Naval service
No significant events.
