RĺO ORINOCO II patrol boats (1999)
Río Orinoco II 1999
Ships
| Names | Builders | Commissioned | Losses | Transfers | Discarding |
|---|---|---|---|---|---|
B9801 Río Orinoco II B9802 Río Caroní B9803... B9804... B9805... B9806... B9807... B9808... B9809... B9810... |
Halter Marine, New Oleans, USA: B9801-9810 |
1999: B9801-9810 |
none |
none |
in service (2019): B9801-9810 |
Technical data
| Displacement standard, t | |
|---|---|
| Displacement full, t | 30 |
| Length, m | 16.4 |
| Breadth, m | 4.30 |
| Draught, m | 1.40 |
| No of shafts | 2 |
| Machinery | 2 MTU 12V383 TE93 diesels |
| Power, h. p. | 2270 |
| Max speed, kts | 36 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 750(28) |
| Armament | 2 x 1 - 12.7/90 |
| Electronic equipment | Raytheon 1210 radar |
| Complement | 5 |
Graphics

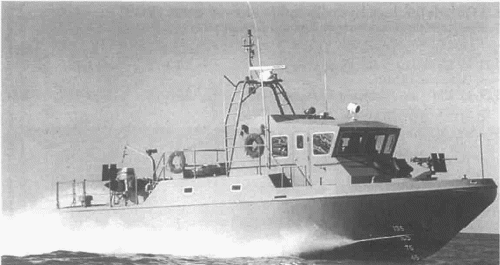

Río Orinoco II 1999
Project history
Aluminium construction.
Modernizations
None.
Naval service
No significant events.
