AF minesweeping boats (1917-1918/1918)
AF2
Ships
| Names | Builders | Completed | Losses | Transfers | Discarding |
|---|---|---|---|---|---|
AF1 - 5 (ex-MT №... [MT No...]) |
Andre Rozenkvist, Abo, Russia or Botnia, Abo, Russia: AF1-5 |
1917 - 1918 // 1918: AF1 - 5 |
none |
none |
before 1935: AF1, 3 - 5 before 1945: AF2 |
Technical data
| Displacement normal, t | 25 |
|---|---|
| Displacement full, t | |
| Length, m | 15.3 |
| Breadth, m | 3.50 |
| Draught, m | ? |
| No of shafts | 1 |
| Machinery | 1 gasoline engine |
| Power, h. p. | 50 |
| Max speed, kts | 9 |
| Fuel, t | gasoline |
| Endurance, nm(kts) | |
| Armament | 1 x 1 - 7.6/94, mechanical minesweeping gear |
| Complement | 8 |
Standard scale images

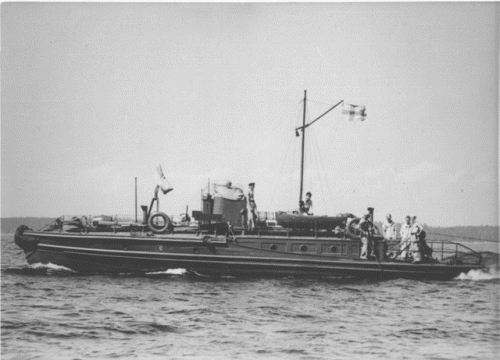

AF1 1918
Graphics
AF2
Project history
Ex-Russian minesweeping boats.
Modernizations
None.
Naval service
No significant events.
