VALE gunboats (1874-1877)

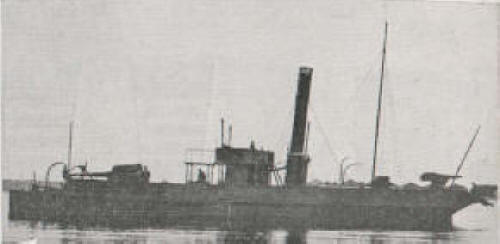

Vale 1934

Ships


Name No Yard No Builder Laid down Launched Comm Fate
Vale     MV Horten   14.4.1874 1874 captured by Germany 13.5.1940
Uller     MV Horten   21.7.1876 1877 captured by Germany 10.4.1940 (Uller)


Technical data


Displacement normal, t

229

Displacement full, t

?

Length, m

27.3

Breadth, m

7.90

Draught, m

2.20

No of shafts2
Machinery

2 VC, 2 boilers

Power, h. p.

200

Max speed, kts

8

Fuel, tcoal 22
Endurance, nm(kts)600(8)
Armament

1 x 1 - 267/14 Armstrong 19.7-ton MLR No.2, 1 x 1 - 37/20 Hotchkiss, 2 x 5 - 37/27 Hotchkiss

Complement38


Standard scale images


<i>Vale</i> 1914
Vale 1914


Graphics


<i>Vale</i> 1934
Vale 1934


Project history

Coastal gunboats of so-called "Elswick" type.

Modernizations

1913, both were converted to minelayers: - 1 x 1 - 267/14; + 1 x 1 - 120/44 Armstrong Y, 50 mines; displacement rose to 238/250t

Naval service

Uller was captured by German troops off Bergen, commissioned by Germans under own name and 2.5.1940 sunk by Norwegian aircraft in the Sogne-fjord. Vale was 13.5.1940 captured by German minesweeper М1 off Bremanger, commissioned by Germans as auxiliary.
