Bata 2012

Ships

Name	No	Yard No	Builder	Laid down	Launched	Comp	Fate
Bata	047		MTG Delfin, Varna, Bulgaria // ASABA GE, Malabo	16.6.2010	27.1.2011	3.2.2012	in service (2020)

Technical data

Displacement standard, t	1360
Displacement full, t	1780
Length, m	73.5 pp 87.3 oa
Breadth, m	11.8
Draught, m	4.05
No of shafts	2
Machinery	2 Caterpillar C280-16 diesels
Power, h. p.	13760
Max speed, kts	25
Fuel, t	diesel oil
Endurance, nm(kts)	3500(12)
Armament	1 x 1 - 76/59 AK-176, 2 x (2 Baryer ATGM + 1 - 30/100 + 1 - 7.6/90) Katran-M (8 Baryer), 2 x 6 - 30/54 AK-630M, helicopter deck
Electronic equipment	Delta-M, nav. radars, Selena e/o system
Complement	55

Standard scale images

Graphics

Project history

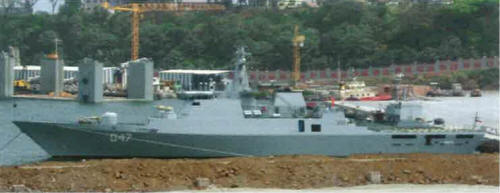

Ship was built at Varna as "search-and-rescue ship Kasatka" under SV-01 design and outfitted and armed in Equatorial Guinea. Armament was presumably removed from scrapped Ukrainian ships. Ship carries two RIBs in hangar under the helicopter deck, launched via stern ramp.

Modernizations

None.

Naval service

No significant events.
