Ships

Name	No	Yard No	Builder	Laid down	Launched	Comp	Fate
تحيا مصر [Tahya Misr] (ex-Normandie)	1001		DCNS, Lorient, France	8.10.2009	18.10.2012	23.6.2015	in service (2019)

Technical data

Displacement standard, t	4500
Displacement full, t	6040
Length, m	129.0 pp 142.2 oa
Breadth, m	18.0 wl 19.7 deck
Draught, m	7.50
No of shafts	2
Machinery	CODLOG: 1 General Electric-Avio LM2500+G4 gas turbine / 4 MTU 16V4000 M408B diesel-generators, 2 Jeumont electric motors
Power, h. p.	43520 / 6000
Max speed, kts	27
Fuel, t	diesel oil / gas turbine oil
Endurance, nm(kts)	6000(15)
Armament	2 x 4 MM40 Exocet Block III SSM (8 MM40), 2 x 8 Sylver A43 VLS (16 Aster-15 SAM), 1 x 1 - 76/62 OTO-Melara Compact SR, 2 x 1 - 20/90 Narwhal-20B, 4 x 1 - 12.7/90, 2 x 2 - 324 B515/H/2 TT (19 MU90), 1 helicopter (NH90)
Electronic equipment	2x Terma Scanter 2001, Herakles, NA-25XP radars, Artemis IR e/o detector, Najir e/o director, UMS-4110CL, CAPTAS UMS-4249 sonars, SIGEN, FIGN ECM suites, 2x NGDS decoy RL, 2x WASS SLAT torpedo decoy launchers, SETIS CCS
Complement	108

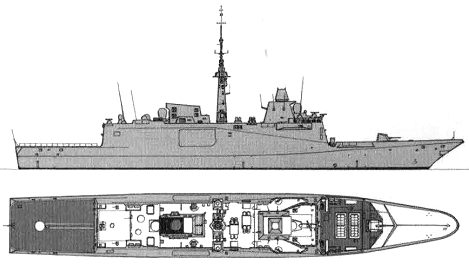

Standard scale images

Project history

French FREMM class frigate Aquitaine, purchased by Egypt 16.2.2015 and completed without MDCN cruise missile VLS and JASS ECM suite.

Modernizations

None.

Naval service

No significant events.

Many thanks to ChangZhi Wang for additional information on this page.
