FIGHTING SHIPS OF THE WORLD
EAST TIMOR
COASTAL FORCES
OÉCUSSE patrol boats (1974/2002)

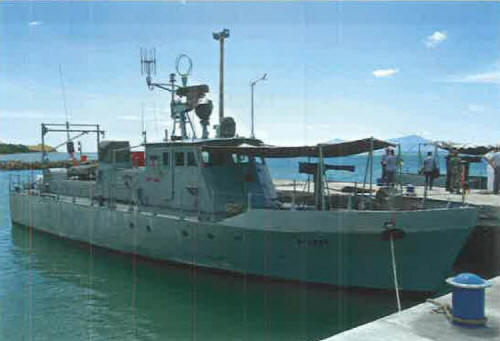

Oécusse 2008
Ships
| Names | Builders | Completed | Losses | Transfers | Discarding |
|---|---|---|---|---|---|
P101 Oécusse (ex-Albatroz) P102 Ataúro (ex-Açor) |
Arsenal do Alfeite, Portugal: P101, 102 | 1974 // 2002: P101, 102 |
None |
none |
2016: P101, 102 |
Technical data
| Displacement standard, t | |
|---|---|
| Displacement full, t | 45 |
| Length, m | 21.9 pp 23.6 oa |
| Breadth, m | 5.25 |
| Draught, m | 1.60 |
| No of shafts | 2 |
| Machinery | 2 Cummins diesels |
| Power, h. p. | 1100 |
| Max speed, kts | 20 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 2500(12) |
| Armament | 1 x 1 - 20/70 Mk 4, 2 x 1 - 12.7/90 |
| Electronic equipment | Decca 316P radar |
| Complement | 8 |
Graphics
Oécusse 2008
Project history
Former Portugal patrol boats.
Modernizations
None.
Naval service
No significant events.
