FIGHTING SHIPS OF THE WORLD
EAST TIMOR
COASTAL FORCES
JACO patrol boats (2010)
Betano 2012
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| Jaco | P212 | Giujian SY, China | 11.6.2010 | in service (2020) | |||
| Betano | P215 | Giujian SY, China | 11.6.2010 | in service (2020) |
Technical data
| Displacement standard, t | 150 |
|---|---|
| Displacement full, t | 175 |
| Length, m | 40.2 pp 43.0 oa |
| Breadth, m | 6.40 |
| Draught, m | 1.61 |
| No of shafts | 4 |
| Machinery | 4 Z12-V190BCJ diesels |
| Power, h. p. | 4800 |
| Max speed, kts | 28 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 750(16) |
| Armament | 2 x 1 - 30/77 PJ-13, 2 x 2 - 14.5/93 |
| Electronic equipment | LD-1510/6 radar |
| Complement | 38 |
Graphics

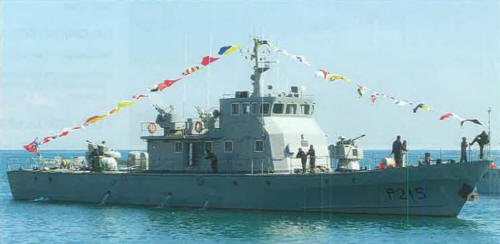

Betano 2012
Project history
Chinese project 062IG, ordered in 2008.
Modernizations
None.
Naval service
No significant events.
