FIGHTING SHIPS OF THE WORLD
BENIN
COASTAL FORCES
ALIBORI patrol boats (2012)
Alibori 2012
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| Alibori | P109 | Océa, Les Sables d'Olonne, France | 2/2012 | 3/2012 | in service (2020) | ||
| Oueme | P110 | Océa, Les Sables d'Olonne, France | 3/2012 | 4/2012 | in service (2020) | ||
| Zou | P111 | Océa, Les Sables d'Olonne, France | 5/2012 | 6/2012 | in service (2020) |
Technical data
| Displacement standard, t | 100 |
|---|---|
| Displacement full, t | 116 |
| Length, m | 31.8 |
| Breadth, m | 6.30 |
| Draught, m | 1.20 |
| No of shafts | 2 waterjets |
| Machinery | 2 Caterpillar C32 diesels |
| Power, h. p. | 3600 |
| Max speed, kts | 30 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 900(14) |
| Armament | 1 x 1 - 20/90 Super Sea Rogue |
| Electronic equipment | 2x Furuno radars |
| Complement | 13 |
Graphics

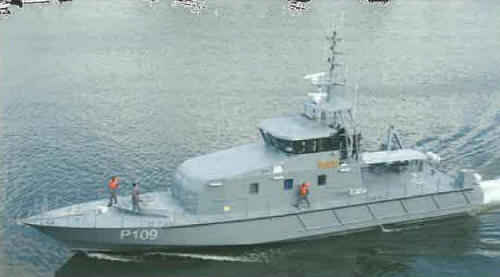

Alibori 2012
Project history
FPB98 Mk I design. Ordered in 2011.
Modernizations
none
Naval service
No significant events.
