ALTAIR patrol boats (2003-2004)





Altair 2013

Ships


Names Builders Commissioned Losses Transfers Discarding

GC112 Altair

GC114 Arcturus

Swiftships, Morgan City, USA: GC112, 114

2003: GC112

2004: GC114

none

none

in service (2019): GC112, 114



Technical data


Displacement standard, t95
Displacement full, t
Length, m

35.1

Breadth, m

7.32

Draught, m

1.50

No of shafts

3 waterjets

Machinery

3 Caterpillar 3412 V12 diesels

Power, h. p.

3000

Max speed, kts

25

Fuel, t

diesel oil

Endurance, nm(kts)
Armament

1 x 1 - 20/70 Mk 10, 2 x 1 - 12.7/90

Electronic equipment2x Furuno radars
Complement


Graphics

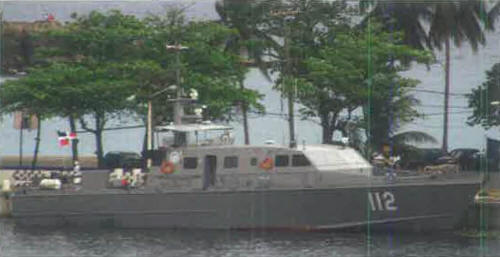

<i>Altair </i>2013
Altair 2013


Project history

Swiftships 35M class. Carry 4.7m RIB, launched via stern ramp.

Modernizations

None.

Naval service

No significant events.
