No225 patrol craft (1966)
Ships
| Names | Builders | Commissioned | Losses | Transfers | Discarding |
|---|---|---|---|---|---|
225-227 |
345 Yd, Yaroslavl' or Sosnovka Yd, USSR: 225-227 |
1966: 225-227 |
225 (1-2/1991), 226 (1-2/1991), 227 (1980-1988) |
none |
none |
Technical data
| Displacement standard, t | 35 |
|---|---|
| Displacement full, t | 37 |
| Length, m | 21.0 |
| Breadth, m | 3.98 |
| Draught, m | 1.10 |
| No of shafts | 1 |
| Machinery | 1 3D6S diesel |
| Power, h. p. | 150 |
| Max speed, kts | 10 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 860(8) |
| Armament | 1 x 2 - 25/80 2M-3M or 1 x 2 - 12.7/79 |
| Electronic equipment | Donets-2 or Liman radar |
| Complement | 10 |
Standard scale images

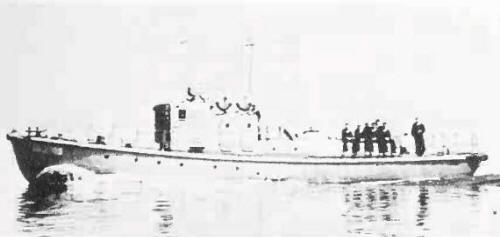

No225 1970
Graphics
Project history
Soviet multipurpose boats of Project 376, patrol variant V368.
Modernizations
None.
Naval service
All craft were lost during Desert Storm operation in 1991.
