HIRSHOLM anti-mine drones command boats (2007-2008)
Hirsholm 2012
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| Hirsholm | MSD5 | Danish Yard, Skagen | 29.6.2007 | in service (2019) | |||
| Saltholm | MSD6 | Danish Yard, Skagen | 28.3.2008 | in service (2019) |
Technical data
| Displacement standard, t | 98 |
|---|---|
| Displacement full, t | 138 |
| Length, m | 28.9 |
| Breadth, m | 6.40 |
| Draught, m | 1.80 |
| No of shafts | 2 |
| Machinery | 2 Scania DC16 diesels |
| Power, h. p. | 510 |
| Max speed, kts | 12 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 600(10) |
| Armament | equipment for remote control of drone minesweepers |
| Electronic equipment | Furuno 2117 radar |
| Complement | 9 |
Graphics

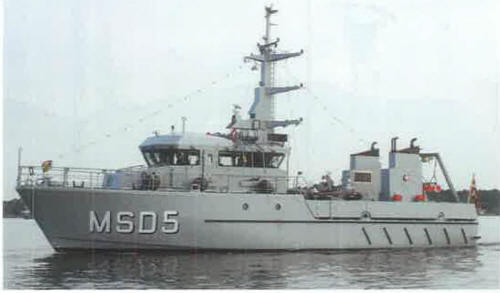

Hirsholm 2012
Project history
Ordered in 2004. GRP hull. Intended for operation with drone minesweepers. All ship has space for one StanFlex container.
Modernizations
None.
Naval service
No significant events.
