FB31 patrol craft (1991-1992)





FB35 2007

Ships


Names Builders Completed Losses Transfers Discarding

FB31-42

STM, Jurong: FB31-42

1991-1992: FB31-42

none

none

2016: FB31-42



Technical data


Displacement standard, t
Displacement full, t

20

Length, m

14.5

Breadth, m

4.10

Draught, m

1.20

No of shafts

2 waterjets

Machinery

2 MTU 12V183 TC91 diesels

Power, h. p.

1200

Max speed, kts

30

Fuel, t

diesel oil

Endurance, nm(kts)

300(22)

Armament

1 x 1 - 7.6/90

Electronic equipment

Decca radar

Complement

4



Graphics

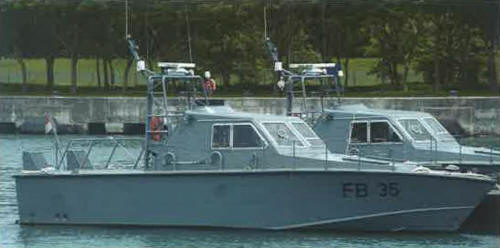

<i>FB35 </i>2007
FB35 2007


Project history

Small inshore patrol boats.

Modernizations

None.

Naval service

No significant events.
