PEDER SKRAM frigates (1966-1967)





Herluf Trolle 1972

Ships


Name No Yard No Builder Laid down Launched Comp Fate
Peder Skram F352 370 Helsingør Skibsvaerft 25.9.1964 20.5.1965 30.6.1966 stricken 7.1990
Herluf Trolle F353 371 Helsingør Skibsvaerft 18.12.1964 8.9.1965 16.4.1967 stricken 7.1990


Technical data


Displacement standard, t

2200
Displacement full, t

2720
Length, m

108.0 pp 112.6 oa
Breadth, m

12.0
Draught, m

4.30
No of shafts

2
Machinery

CODOG: 2 General Motors 16-567 diesels / 2 Pratt & Whitney PWA GG 4A-3 gas turbines
Power, h. p.

4800 / 44000
Max speed, kts

16.5 / 32.5
Fuel, t

diesel oil
Endurance, nm(kts)

7200(15)
Armament

2 x 2 - 127/38 Mk 38, 4 x 1 - 40/60 Mk 3, 1 DCR (8)
Electronic equipmentCWS-2, CWS-3, NWS-1, NWS-2, 3x CGS-1 radars, PMS-26 sonar
Complement

200


Standard scale images

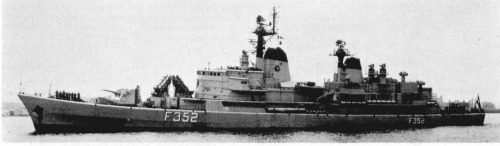

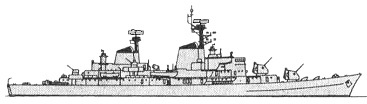

<i>Peder Skram </i>1968
Peder Skram 1968

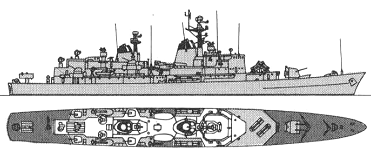

<i>Peder Skram </i>1980
Peder Skram 1980


Graphics

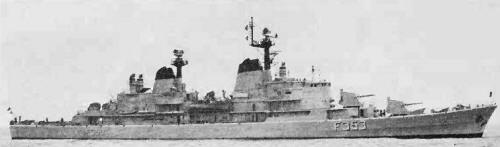

<i>Herluf Trolle </i>1972
Herluf Trolle 1972
<i>Peder Skram </i>1980 <i>Many thanks to Wolfgang Stöhr for additional information on this page.</i>
Peder Skram 1980 Many thanks to Wolfgang Stöhr for additional information on this page.


Project history

Officially rated as 'inspection vessels'. Ordered 1960-61. Specialty designed and equipped for fishery protection in Greenland, Faroe and North Sea waters.

Modernizations

1970, both: + 2 x 2 - 533 TT

1977, Herluf Trolle; 1978, Peder Skram: - 1 x 2 - 127/38, CWS-2, NWS-2 radars; + 2 x 4 Harpoon SSM (8 RGM-84A), 1 x 8 NATO Sea Sparrow SAM (16 RIM-7M), CWS-3 (2nd), Mk 91, Scanter Mil 009 radars, Cutlass ECM suite

mid-1980s, both: + 2 x 1 - 20/70 Mk 7

Naval service

No significant events.
