HABANA gunboats (1912)
Habana 1921
Ships
| Names | Builders | Commissioned | Losses | Transfers | Discarding |
|---|---|---|---|---|---|
Habana Pinar del Río |
Krajewski-Pesant, Habana: Habana, Pinar del Río |
1912: Habana, Pinar del Río |
none |
none |
late 1940s: Habana, Pinar del Río |
Technical data
| Displacement normal, t | 80 |
|---|---|
| Displacement full, t | |
| Length, m | 30.5 |
| Breadth, m | 5.49 |
| Draught, m | 1.30 |
| No of shafts | 1 |
| Machinery | 1 VTE, Babcock boiler |
| Power, h. p. | 200 |
| Max speed, kts | 12 |
| Fuel, t | coal 20 |
| Endurance, nm(kts) | |
| Armament | 1 x 1 - 37/40 Mk II/III |
| Complement | 20 |
Graphics

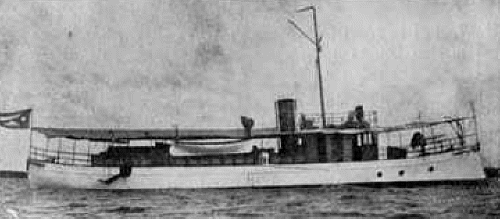

Habana 1921
Project history
Small wooden ships ordered under the 1910 programme. They were built by national shipbuilders: Habana and Pinar del Río as naval gunboats, and Matanzas and Las Villas as revenue cutters. To beginning of WWII ships can make no more than 7kts.
Modernizations
None.
Naval service
Because of bad technical condition Habana and Pinar del Río were used only for coastal service.
