CAPITÁN FERNÁNDEZ QUEVEDO coast guard patrol vessel (1932)
Donativo 1948
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| Capitán Fernández Quevedo, 4.1933- Donativo | GC102 | Habana | 1932 | 1932 | discarded 1973 |
Technical data
| Displacement standard, t | 130 |
|---|---|
| Displacement full, t | |
| Length, m | 30.8 |
| Breadth, m | 5.49 |
| Draught, m | 2.13 |
| No of shafts | 2 |
| Machinery | 2 diesels |
| Power, h. p. | 300 |
| Max speed, kts | 12 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | |
| Armament | 2 x 1 - 37/40 Mk 2.3 |
| Complement | 21 |
Graphics

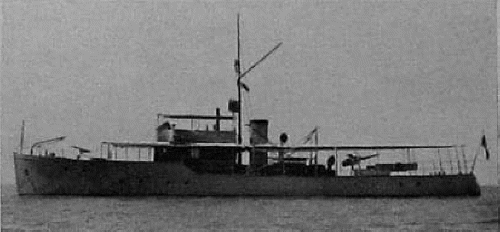

Donativo 1948
Project history
One-masted gunboat. After coup d`etat 4.9.1933 renamed Donativo.
Modernizations
None.
Naval service
No significant events.
