LEONCIO PRADO motor patrol boat (1946)
Leoncio Prado 1952
Ships
| Names | Builders | Commissioned | Losses | Transfers | Discarding |
|---|---|---|---|---|---|
GC101 Leoncio Prado |
Habana: GC101 |
1946: GC101 |
None |
None |
1976: GC101 |
Technical data
| Displacement standard, t | 80 |
|---|---|
| Displacement full, t |
|
| Length, m | 33.5 |
| Breadth, m | 4.42 |
| Draught, m | 1.98 |
| No of shafts | 2 |
| Machinery | 2 diesels |
| Power, h. p. | 1000 |
| Max speed, kts | 15.9 |
| Fuel, t | petrol 7800 l |
| Endurance, nm(kts) | 14000(8) |
| Armament | 1 x 1 - 20/70 Mk 4, 2 DCR |
| Complement |
Graphics

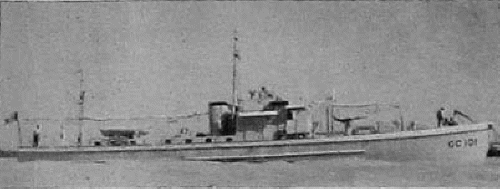

Leoncio Prado 1952
Project history
Wooden-hulled home-built submarine chaser.
Modernizations
None.
Naval service
No significant events.
