271 fast attack craft (missile) (1959-1965/1963-1966)

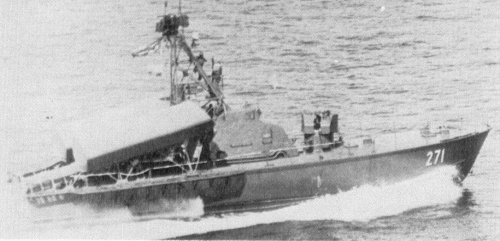

No 271 1970
Ships
| Names | Builders | Commissioned | Losses | Transfers | Discarding |
|---|---|---|---|---|---|
18 boats (including ex-R-83, 90, 115-118, 127): 271 275 16 others |
5 Yd, Leningrad, USSR: 18 boats |
1959-1963 // 8.1963: 12 boats 1959-1965 // 1965: 4 boats 1959-1965 // 1966: 2 boats |
none |
none |
1979: 4 boats 1985: 9 boats 1987: 5 boats |
Technical data
| Displacement standard, t | 70 |
|---|---|
| Displacement full, t | 81 |
| Length, m | 25.5 |
| Breadth, m | 6.20 |
| Draught, m | 1.40 |
| No of shafts | 4 |
| Machinery | 4 M50F-4 diesels |
| Power, h. p. | 4800 |
| Max speed, kts | 38 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 885(11.8) |
| Armament | 2 x 1 P-15 SSM (2 P-15), 1 x 2 - 25/112 2M-3M |
| Electronic equipment | Rangout radar |
| Complement | 17 |
Standard scale images
No 271 1965
Graphics
No 271 1970
Project history
Former Soviet Project 183R fast attack craft.
Modernizations
None.
Naval service
No significant events.
