Caldas 1974

Ships

Name	No	Yard No	Builder	Laid down	Launched	Comp	Fate

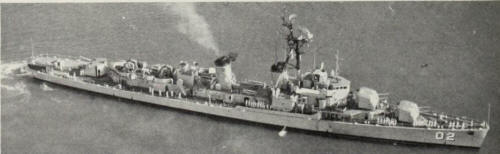

Caldas (ex-Willard Keith)	D02	9024	Bethlehem, San Pedro, USA	3/1944	29.8.1944	12/1944 // 1.7.1972	discarded 1977

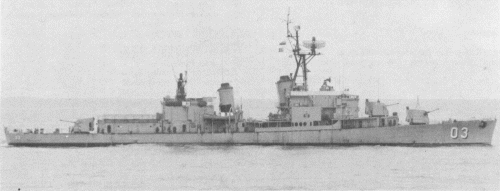

Santander (ex-Waldron)	D03	384	Federal, Kearny, USA	11/1943	26.3.1944	6/1944 // 30.10.1973	discarded 1986

Technical data

Displacement standard, t	2345
Displacement full, t	3210
Length, m	112.5 wl 114.8 oa
Breadth, m	12.5
Draught, m	4.30
No of shafts	2
Machinery	2 sets General Electric geared steam turbines, 4 Babcock & Wilcox boilers
Power, h. p.	60000
Max speed, kts	33.4
Fuel, t	oil 497
Endurance, nm(kts)	3300 (20)
Armament	D02: 3 x 2 - 127/38 Mk 12, 2 x 2 - 76/50 Mk 33, 2 x 3 - 324 Mk 32 TT, 2 x 24 Hedgehog Mk 11 ASWRL D03: 3 x 2 - 127/38 Mk 38, 2 x 3 - 324 Mk 32 TT, 2 x 24 Hedgehog Mk 11 ASWRL, 1 helicopter (BO-105)
Electronic equipment	D02: SPS-6, SPS-10, Mk 25, Mk 34 radars, QHB sonar, WLR-1, ULQ-6 ECM suites D03: SPS-10, SPS-40, Mk 25 radars, SQS-30 sonar, WLR-1, ULQ-6 ECM suites
Complement	274

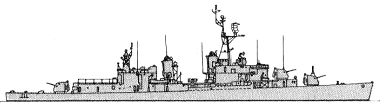

Standard scale images

Graphics

Project history

Former USN Allen M. Sumner class destroyers. Santander was modernized under FRAM II programme under the USN flag.

Modernizations

None.

Naval service

No significant events.
